A dose response curve plots what you gave (dose or concentration, on the X-axis) against what happened (biological response, on the Y-axis), and most pharmacology data traces a sigmoidal shape once concentration is log-transformed. Reading one well means pulling three things out: the EC50 or IC50 (potency), the Emax (efficacy ceiling), and a quick gut check on whether the underlying assay was even reliable enough to trust the fit.
TL;DR:
- Accurate dose response analysis requires reporting confidence intervals for EC50 and IC50, not just point estimates, to account for assay variability.
- Using a semilog X-axis is standard for visualizing responses over multiple orders of magnitude but should be validated against raw data to avoid fabrication artifacts.
- Non-monotonic curves, such as biphasic responses, indicate receptor desensitization or off-target effects and should not be dismissed as noise.
- Assay quality assessed by Z' factor above 0.5 is essential before trusting curve parameters, especially in personalized, low-throughput, or critical screening contexts.
- Curve fitting must be paired with cross-checks, including replicates, proper normalization, and residual analysis, to ensure biological relevance and accurate interpretation.
Table of Contents
- Understanding EC50, IC50, Emax, and the Hill Coefficient
- Plotting Choices That Change What Your Curve Says
- Graded vs. Quantal Curves, and When Responses Go Non-Monotonic
- Fitting the Curve: Hill Equation, Emax Model, and Common Pitfalls
- Z' Factor and Assay Quality Before You Trust Any Curve
- Spotting Confounders and Verifying a Fit Before You Trust It
- A Worked Example: From Raw Plate Data to a Reported EC50
- Why RareLabs Treats Curve Fitting as a Translational Decision, Not Just a Lab Exercise
- RareLabs Knowledge: Support for Dose-Response and Screening Work
- What the Textbooks Get Right, and Where They Stop Short
- Sources
Understanding EC50, IC50, Emax, and the Hill Coefficient
Four numbers do most of the work in dose response analysis, and confusing them is the single most common misread in pharmacology papers.
EC50 (half-maximal effective concentration) is the concentration producing 50% of the maximal response for an agonist. IC50 is its inverse cousin, the concentration that inhibits 50% of a signal, typically used for antagonists or inhibitory compounds. ED50 shows up in in vivo work, describing the dose (not concentration) producing a defined effect in 50% of subjects or 50% of maximal effect. All three answer a "how much do I need" question, just in different experimental contexts.
Emax answers a different question entirely: what's the ceiling?
- Potency shifts the curve left or right along the X-axis. A more potent compound needs less of itself to hit the same effect.
- Efficacy is the height of the plateau. It's independent of potency, and the Merck Manual's pharmacology reference treats them as separate axes for exactly this reason.
- Hill coefficient (n) describes steepness. A value near 1 suggests simple, non-cooperative binding; values above 2 often point to cooperative binding or multiple binding sites acting in concert.
Statistic to know: EC50/IC50 values should always ship with a confidence interval, not a bare point estimate. A curve reporting "EC50 = 12 nM" with no CI is telling you less than one reporting "EC50 = 12 nM, 95% CI 8 to 18 nM," because the second version tells you how much the assay itself might be wobbling.
Plotting Choices That Change What Your Curve Says
The X-axis decision alone can make or break the interpretability of a screen.
- Use a semilog X-axis when spanning multiple orders of magnitude. Concentration ranges from 1 nM to 100 µM compress into a readable sigmoid on a log scale; on linear axes, the curve looks like a hockey stick.
- Normalize to vehicle and positive control, expressing response as percent of maximal signal rather than raw units. This makes plates and days comparable to each other.
- Run at least three biological replicates per condition, and plot standard error or a confidence band rather than bare standard deviation when comparing curve fits across groups.
- Always pull up the raw, non-transformed dose plot as a sanity check. Log scaling can visually manufacture a threshold that doesn't exist in the underlying data, a caveat Wikipedia's dose-response overview flags directly.
Pro Tip: Before you trust a log-plot inflection as biologically real, overlay the raw linear-dose data. If the "threshold" disappears or smears out, you're looking at a plotting artifact, not a mechanism.
Semilog plotting is convention, not law. It earns its place because most receptor and enzyme systems respond across several logs of concentration, but a narrow-range assay sometimes reads more honestly on a linear axis.
Graded vs. Quantal Curves, and When Responses Go Non-Monotonic
Not every dose response curve describes the same kind of outcome, and mixing up the two types leads to real misinterpretation.
- Graded curves track a continuous measurement in an individual system, a cell, a tissue, an enzyme, as concentration rises. EC50 belongs here.
- Quantal curves track a binary outcome across a population: what fraction of animals or patients respond at all. LD50, the dose lethal to 50% of a population, is the classic quantal endpoint, and it answers a population-frequency question rather than a magnitude question.
- Monotonic curves rise or fall consistently with dose, which is what most people picture by default.
- Non-monotonic (U-shaped or biphasic) curves reverse direction partway through the range, often from receptor desensitization at high concentrations, off-target binding that only kicks in at higher doses, or hormesis, where low doses stimulate and high doses inhibit.
Treating a biphasic compound's high-dose data as noise rather than signal is a documented way screening programs miss real biology.
Fitting the Curve: Hill Equation, Emax Model, and Common Pitfalls
The workhorse model in pharmacology is the Hill equation, and most software fitting an Emax model is really fitting the same underlying math: E = E0 + (Emax × [A]^n) / (EC50^n + [A]^n). EC50 marks the inflection point; n, the Hill coefficient, sets the steepness, as detailed in the Hill equation reference on Wikipedia.

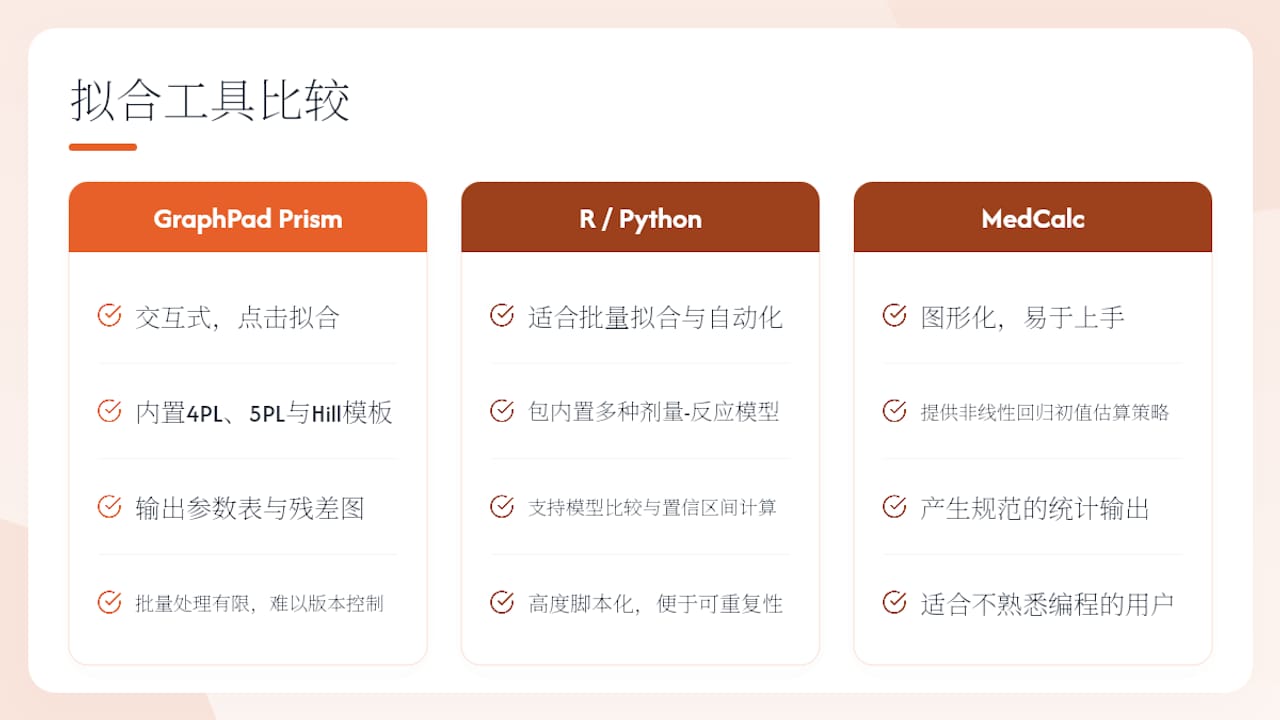

Fitting this in practice, whether with GraphPad Prism, R's drc package, or Python's scipy.optimize, comes down to nonlinear least-squares regression against that four-parameter (or sometimes three-parameter, fixed-bottom) model.
- Constrain parameters when biology demands it. If you know the assay floor is zero, fix the bottom rather than letting the fit wander into negative response values.
- Feed the algorithm sensible starting values. A wildly wrong initial guess for EC50 sends iterative fitting into a local minimum that looks plausible but isn't.
- Watch for overfitting on sparse data. A four-parameter fit needs enough concentration points spanning the transition region, not just clustered at the extremes.
- Report the confidence interval on EC50/IC50, not just the point estimate, since a tight CI is what separates a trustworthy potency claim from a guess.
Z' Factor and Assay Quality Before You Trust Any Curve
A dose response curve is only as good as the assay that generated it, and Z' factor is the standard number for judging that upfront.
Z' factor is calculated as 1 − (3 × (σp + σn)) / |μp − μn|, using only the means and standard deviations of your positive and negative controls, according to Calculator Academy's Z factor reference. It never touches your sample wells; that's what separates Z' from the related "Z factor" (no prime), which folds in test-sample variability to judge whether a specific screening run performed well.
| Z' factor range | Interpretation |
|---|---|
| 0.5 | Excellent assay, ready for high throughput screening |
| 0 to 0.5 | Marginal, usable but interpret cautiously |
| Below 0 | Signal windows overlap; do not trust curve fits from this assay |
Statistic to know: a Z' factor at or above 0.5 is the generally cited threshold for a screen fit for high throughput screening cost and scale. Below that, invest in more replicates, tighter control wells, or a redesigned signal window before you extract a single EC50 from the data. The constant "3" in the formula is a convention, not a law of nature, so treat the threshold as a practical guide rather than gospel.
Spotting Confounders and Verifying a Fit Before You Trust It
A clean-looking sigmoid can still be lying to you. pH drift, temperature fluctuation between plate reads, cell line passage number, and receptor expression level all shift EC50 and Kd values independently of the compound you're testing, a point the Merck Manual's pharmacodynamics chapter makes directly.
- Rerun the assay on a separate day to check whether the EC50 holds; a shift of more than twofold between runs signals a control problem, not biology.
- Confirm findings with an orthogonal assay format when the result will drive a major decision.
- Include a known positive and negative control compound in every plate, not just at assay validation.
- Widen the dose range if your curve doesn't visibly plateau on both ends; a truncated range inflates uncertainty on both EC50 and Emax.
Pro Tip: If your residual plot shows a clear pattern rather than random scatter around zero, the model is wrong for your data, not just imprecisely fit. Try a different constraint before blaming the assay.
A Worked Example: From Raw Plate Data to a Reported EC50
Here's the sequence that turns raw numbers into a defensible EC50:
- Collect at least three biological replicates across eight to ten concentrations spanning several logs.
- Normalize each plate to its own vehicle and positive control, converting raw signal to percent maximal response.
- Plot on a semilog X-axis and visually confirm a plateau on both ends.
- Fit a four-parameter Hill/Emax model using nonlinear regression, letting the software solve for EC50, Hill slope, top, and bottom.
- Report EC50 with its 95% confidence interval, not alone.
Statistic to know: a fit reporting a CI spanning more than a full log unit (say, EC50 = 50 nM with a range of 10 to 300 nM) usually means your concentration points didn't bracket the transition region tightly enough. Add points near the inflection and rerun before reporting the number as final. Visually, a leftward-shifted curve with the same plateau height tells you potency changed; a lower plateau at the same EC50 tells you efficacy dropped instead.
Why RareLabs Treats Curve Fitting as a Translational Decision, Not Just a Lab Exercise
Hopeatrarelabs builds patient-specific disease models from induced pluripotent stem cells and CRISPR-edited isogenic controls, then runs high throughput screens against thousands of FDA-approved drugs, custom antisense oligonucleotides, and gene therapy candidates. Every one of those screens produces a dose response curve, and a sloppy EC50 fit doesn't just mean a messy figure. It means recommending, or missing, a real treatment option for a family with no other path forward.
That's why assay quality checks like Z' factor and confidence-interval reporting aren't academic formalities here. A patient-derived iPSC line behaves differently than an immortalized cell line, so the confounders that shift EC50, receptor expression, passage variability, culture conditions, matter more, not less, when the model comes from one specific person's cells rather than a standardized line.
RareLabs Knowledge: Support for Dose-Response and Screening Work
Hopeatrarelabs runs personalized drug discovery programs built around patient-derived iPSC models, high throughput repurposed drug screening, and custom ASO development, and every one of those programs lives or dies on the same curve-fitting discipline covered above.
Where Hopeatrarelabs differs from running these screens solo, or contracting a generic CRO, is the disease-specific modeling layer underneath the curve: isogenic CRISPR controls built from the patient's own cells, not a proxy cell line that may not carry the actual mutation. That context changes how you should read a shifted EC50 or a flattened Emax. For researchers, clinicians, and foundations who need help translating fitted parameters into a real treatment decision rather than just a figure for a paper, RareLabs Knowledge walks through how personalized screens get designed, run, and interpreted for ultra-rare and undiagnosed genetic disease programs. Start there to see whether a contracted screening program fits your specific case.
What the Textbooks Get Right, and Where They Stop Short
Most pharmacology courses teach EC50 and Hill coefficients as if every assay behaves like the clean, high-signal examples in the slides. Real screening data rarely cooperates that neatly, and the gap between "fits the textbook sigmoid" and "actually informs a treatment decision" is wider than most training accounts for.
The overlooked piece is that a beautifully fitted curve from a bad assay is worse than no curve at all, because it looks authoritative while encoding noise as biology. Z' factor gets treated as a screening-department formality in a lot of training programs, something you calculate once during assay validation and then forget. It deserves to be checked on every batch, especially in personalized or low-throughput contexts where you can't simply run the assay again next week with fresh cells from an unlimited donor pool.
The other gap: potency and efficacy get conflated constantly in casual discussion, even among people who know better on paper. Dose response curves are honest about that distinction. The people reading them aren't always as careful.
— John
